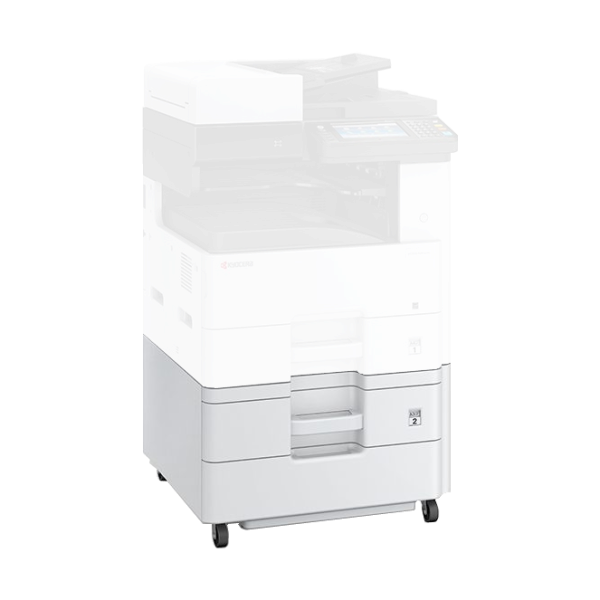

KYOCERA Ecosys M8124cidn A3 colour multi-function laser printer with additional paper tray & cabinet, Up to 24 pages-per-minute, 1200 x 1200 dpi resolution, duplex print & scan, large paper input capacity, finishing options, 7-inch colour touch screen -  Print / Copy / Scan / Fax - Optional / Wifi - Optional

This device is supplied with a starter toner cartridge & 3 Years on-site warranty.

Purchase with confidence from a KYOCERA Document Solutions Platinum Business Partner.

It's important to purchase KYOCERA products from a reputable company that can provide ongoing comprehensive support for the life of the product.

• KYOCERA Document Solutions Platinum Business Partner.
• Australian owned and operated company - since 2001.
• Full installation service available - hourly rate applies.
• Professional after sales Service & Maintenance for the life of the product - hourly rate applies.
• Free telephone support.
• Free expert advice.
• Best price guarantee on all genuine KYOCERA hardware & supplies.
• Fast national metro delivery - Standard ETA 2-3 business days.

• Technology: KYOCERA ECOSYS, Laser, Colour, HyPAS™
• solution platform
• Operation panel: 109.2 mm (4.3 inch), full-colour touch
• panel display, speaker for job notification
• Type: Desktop
• Engine speed: Up to 24/12 pages A4/A3 per minute in
• colour and b/w. Duplex print speed: 22 page per minute,
• A4 Duplex copy speed: 22 page per minute, A4
• Resolution: 1200 x 1200 dpi (print), 600 x 600 dpi
• (scan/copy)
• Warm-up time: Approx. 30 seconds or less
• Time to first print: Approx. 7.5 seconds or less in b/w,
• 10.2 seconds or less in colour
• Time to first copy: Approx. 8.5 seconds or less in b/w (DP),
• Approx. 11.0 seconds or less in colour (DP) , Approx. 7.6
• seconds or less in b/w (platen cover), Approx. 9.8 seconds
• or less in colour (platen cover)
• CPU: ARM Cortex-A9 Dual core 1,2 GHz
• Memory: Standard 1.5 GB, max. 3 GB
• Standard interface: USB 2.0 (Hi-Speed), 2 x USB
• Host Interface, Gigabit Ethernet (10BaseT/100BaseTX
• /1000BaseT), optional Wi-Fi (IEEE 802.11b/g/n), 2 eKUIO slots,
• for optional internal print server or SSD hard disc and for
• optional fax system, Slot for optional SD Card, NFC tag
• Integrated accounting: 100 department codes
• Dimensions (W x D x H): 590 x 590 x 753 mm (with
• standard Document Processor)
• Weight: Approx. 76 kg (with standard Document Processor)
• Power source: AC 220 V, 50 Hz
• Power consumption
• Printing: 510 W
• Copying: 510 W
• Low power mode: 40W
• Ready-mode: 80 W
• Sleep-mode: 0.5 W
• Noise (sound pressure level: ISO 7779/ISO 9296)
• Copying/Printing in b/w: 52 dB (A)
• Copying/Printing in colour: 53 dB (A)
• Stand-by: 34 dB (A)
• Safety standards: AS/NZS3260
• This unit is manufactured according to ISO 9001 quality
• standard and ISO 14001 environmental standard
• PAPER HANDLING
• All paper capacities quoted are based on paper thickness
• of max. 0.11 mm. Please use paper recommended by
• KYOCERA under normal environmental conditions.
• Input capacity:
• 100-sheet multi-purpose tray, 60–256 g/m2, A3, A4, A5, A6,
• B5, Ledger, Letter, Legal, Folio, Custom (98 x 148 to 297 x
• 432 mm), 500-sheet Standard universal paper cassette,
• 60–256 g/m2, A3, A4, A5, B5, Ledger, Letter, Legal, Folio,
• Max. input capacity with options: 1,600 sheets
• Duplex unit: Duplex as standard supports 60–220 g/m2
• Standard reversing document processor: 50-sheets, A3, A4,
• A5, B5, Letter, Legal, Custom (140 x 182 to 297 x 432 mm)
• Simplex scan 45–160 g/m2, Duplex scan 50–120 g/m2
• Output capacity: Max. 280 sheets; 250 sheets face-down
• (main tray) plus 30 sheets (standard job separator tray)
• PRINT FUNCTIONS
• Controller language: PRE SCRI BE II e
• Emulations: PCL6 (5c/XL), KPDL3 (PostScript 3 compatible),
• PDF Direct Print, XPS Direct Print and Open XPS
• Operating systems: All current Windows operating systems,
• MAC OS X Version 10.5 or higher, Unix, Linux as well as other
• operating systems on request
• Fonts/barcodes: 101 outline fonts (PCL 6, KPDL 3, Windows
• Vista), 1 Bitmap font, 45 types of one-dimensional barcodes,
• 1 type of two-dimensional barcode (PDF417)
• Print features: Encrypted PDF Direct Print, IPP printing,
• e-mail printing, WSD print, secure printing via SSL, IPsec,
• SNMPv3, quick copy, proof and hold, private print, job
• storage and job management functionality
• Mobile printing support: KYOCERA Mobile Print app for
• iOS and Android, AirPrint, Mopria, NFC, Direct Wi-Fi,
• Google cloud print
• COPY FUNCTIONS
• Max. original size: A3/Ledger
• Continuous copying: 1–999
• Zoom range: 25–400% in 1% steps
• Preset magnification ratios: 5 Reductions / 5 Enlargements
• Exposure mode: Auto, manual: 7 steps
• Image adjustments: Text + Photo, Photo, Text, Map,
• Printed document
• Features: Scan-once-copy-many, electronic sort, 2in1, 4in1,
• job reserve, priority print, program, auto duplex copy, split
• copy, continuous scan, auto cassette change (PF-470 or
• PF-471 is required), copy density control, Prevent BleedThrough,
• ID card copy, Skip blank page
• SCAN FUNCTIONS
• Functionality: Scan-to-Email, Scan-to-FTP, Scan-to-SMB,
• Scan to USB Host, Network TWAIN, WIA , WSD scan
• Scan speed: 50 ipm (300 dpi, A4, b/w), 50 ipm (300 dpi,
• A4 colour)
• Scan resolution: 600, 400, 300, 200 dpi, 256 greyscales
• per colour
• Max. scan size: A3, Ledger
• Original recognition: Text, photo, text + photo, light text,
• optimised for OCR
• File types: TIFF, PDF, PDF/A, JPEG, Open XPS, Encrypted PDF,
• High compression PDF, PDF/A-1a/b, PDF/A-2a/b/u
• Compression method: MMR /JPEG
• Features: Colour scan, integrated address book, Active
• Directory support, encrypted data transfer, multi send
• (e-mail, fax, SMB/FTP folder, print) at once, Blank page skip
• FAX FUNCTIONS (OPTIONAL)
• Compatibility: ITU-T Super G3
• Modem speed: Max. 33.6 kbps
• Transmission speed: Max. 33.6 kbps
• Scanning speed: 2.0 seconds or less
• Address book: 200 entries
• Scanning density:
• Normal: 8 dot/mm x 3.85 line/mm (200 x 100 dpi)
• Fine: 8 dot/mm x 7.7 line/mm (200 x 200 dpi)
• Superfine: 8 dot/mm x 15.4 line/mm (200 x 400 dpi)
• Ultrafine: 16 dot/mm x 15.4 line/mm (400 x 400 dpi)
• Halftone: 256 grey scales
• Maximum original size: A3, Ledger
• Compression method: JBIG, MMR, MR, MH
• Memory reception: 700 sheets or more
• Features: Network fax, duplex transmission and reception,
• encrypted transmission and reception,
• polling transmission and reception, broadcast
• CONSUMABLES
• Average continuous toner yield in accordance with
• ISO/IEC 19798
• TK-8119K Toner Kit: Microfine toner black for 12,000 pages A4
• TK-8119C, TK-8119M, TK-8119Y:
• Microfine toner cyan, magenta, yellow for 6,000 pages A4
• Capacity of starter toner is black 3,000 pages, cyan,
• magenta, yellow 1,500 pages A4
• OPTIONS
• Fax System 13
• Paper handling
• PF-470 Paper feeder: Max. 500 sheets; 60-163 g/m2; A3, A4,
• A5, B5, Letter, Legal, Custom (98 x 148 to 297 x 432 mm)
• PF-471 Paper feeder: Max. 1,000 sheets; 60-163 g/m2; A3,
• A4, A5, B5, Letter, Legal, Custom (98 x 148 to 297 x 432 mm)
• Security: Data security kit (E):
• Memory upgrade: DDR3 1GB/2GB
• SD card: for printing forms, fonts, logos, macro storage,
• and for HyPAS™ applications
• UG-33: ThinPrint support
• USB IC Card Reader + Card Authentication Kit (B): Support
• for various authentication keys available. The card holder
• is standard
• Optional interface
• IB-36: Wireless LAN (802.11b/g/n) with Wi-Fi Direct
• ADDITIONAL OPTIONS
• HyPAS Capable: Requires Optional Hard Disk Drive:
• - HD-6 (32GB) HDD
• - HD-7 (128GB) HDD
• Card Authentication Kit (B)
• IB-50 (Gigabit NIC)
• IB-51 (IEEE 802.11b/g/n)
• Scan Extension Kit (A)
• 1570 Cabinet
