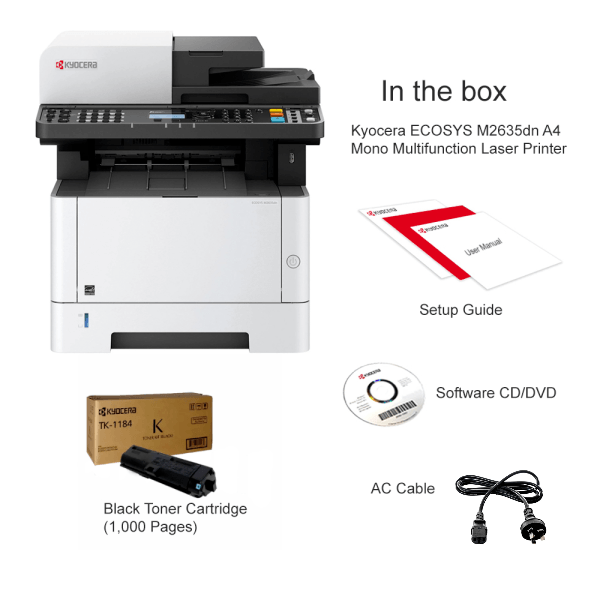

Kyocera ECOSYS M2635dn

The ECOSYS M2635dw is a flexible device that provides an all-in-one solution to increase productivity.... Designed to meet the diverse needs of small to medium-sized companies

GENERAL SPECIFICATION Print / Copy / Fax / Scan

Technology: KYOCERA ECOSYS Laser

Control panel display: 5 line LCD display

Engine speed: Up to 35 pages A4 per minute

Resolution: 300 dpi, 600 dpi, 1,200 dpi

Warm-up time: Approx. 17 seconds or less

Time to first print: Approx. 6.8 seconds or less

Time to first copy: Approx. 6.9 seconds or less

CPU: 800 MHz

Memory: Standard 512 MB, max. 1,536 MB

Standard interface:

USB 2.0 (Hi-Speed), USB Host Interface, Gigabit Ethernet

(10BaseT/100BaseTX/1000BaseT), Slot for optional SD/

SDHC-Card

Dimensions (W x D x H): Main unit: 417 x 412 x 437 mm

Weight: Main unit: Approx. 19 kg

Power source: AC 240 V, 50 Hz

Power consumption:

Copy/Print BW: 661 W

Ready mode: 21 W

Sleep-mode: 1 W

Noise (Sound pressure level: ISO 7779/ISO 9296): Copy/

Print: 47.2 dB(A) LpA

Quiet mode: 44.1 dB(A) LpA

Ready/Standby mode: Immeasurably low

Sleep mode: Immeasurably low

Safety standards: AS/NZ s3260

This unit is manufactured according to ISO 9001 quality

standard and ISO 14001 environmental standard.

PAPER HANDLING

All paper capacities quoted are based on a paper thick-

ness of max. 0.11 mm. Please use paper recommended by

KYOCERA under normal environmental conditions.

Input capacity: 100-sheet multi-purpose tray; 60 – 220 g/

m2; A4, A5, A6, B5, B6, Letter, Legal, Custom (70 x 148 mm –

216 x 356 mm) 250-sheet universal cassette; 60 – 163 g/m2;

A4, A5, A6, B5, Letter, Legal, Custom (105 x 148 – 216 x 356

mm). Max. input capacity with options: 850 sheets

Duplex functionality as standard: Double-sided printing:

60 – 163 g/m²; A4, A5, B5, Letter, Legal

Document processor: 50-sheet, 50 – 160 g/m2

, A4, A5, A6,

B5, B6, Letter, Legal, Custom (100 x 148 to 216 x 356 mm)

Output capacity: Max. 150 sheet face down with paper full

detection

PRINT FUNCTIONS

Controller language: PRESCRIBE IIc

Emulations: PCL 6 (PCL 5e/PCL-XL), PostScript 3 (KPDL 3),

PDF Direct Print, XPS/OpenXPS

Operating systems: All current Windows operating systems,

MAC OS X Version 10.5 or higher, Unix, Linux as well as other

operating systems on request

Fonts/barcodes: 93 scalable fonts for PCL6/KPDL3,

8 fonts for Windows Vista, 1 bitmap font, 45 barcodes

(e.g. EAN8, EAN13) with automatic generation of check-

sums as well as support of two-dimensional barcodes

PDF-417 under PRESCRIBE (PCL and other barcodes avail-

able as an option)

COPY FUNCTIONS

Max. original size: A4(Platen)/Legal(DP)

Continuous copying: 1 – 999***

Zoom range: 25 – 400% in 1% steps

Preset magnification ratios: 7 Reductions/5 Enlargements

Exposure mode: Manual: 9 steps

Image adjustments: Text + Photo, Photo, Text, Map

Features: Scan-once-copy-many, electronic sort, 2in1, 4in1,

ID-card copy, priority print, program, continuous scan,

auto cassette change, copy density control

SCAN FUNCTIONS (Simplex)

Functionality: Scan-to-e-mail (SMTP), Scan-to-FTP (FTP over

SSL), Scan-to-SMBv3, Scan to USB Host, TWAIN scan (USB,

network), WSD (WIA) scan (USB, network)

Scan speed: 40 ipm (300 dpi, A4, b/w), 23 ipm (300 dpi,

A4, colour)

Scan resolution: 300dpi x 300dpi, 200dpi x

200dpi(Default), 200dpi x 100dpi , 600dpi x 600dpi,

400dpi x 400dpi, 200dpi x 400dpi

Max. scan size: A4(Platen), Legal(DP)

Original recognition: Text + Photo, Photo, Text, Light Text/

Fine Line, Text (for OCR)

Scan file formats: TIFF, PDF, PDF/A-1 , high compression

PDF, encrypted PDF, JPEG, XPS

Compression method: MMR/JPEG

Features: Integrated address book, LDAP, encrypted data

transfer, Blank sheet skip

Command Center RX

The Command Center RX enables to control and manage various settings

by accessing the device via Web browser.

USB Host Interface for USB Flash Memory

Documents can be printed directly from a USB Flash Memory (e.g. USB

stick) via the USB host interface. The documents stored as PDF, XPS, TIFF or

JPEG are selected directly via the printer’s control panel. No computer is

required.

Application-based Profiles

The KX printer driver can create a direct link between dedicated

applications and predefined or customised print profiles. You can set that

all documents from a user or an application be printed with activated

duplex mode as standard, thus leading to a reduced paper consumption.

FAX FUNCTIONS

Compatibility: ITU-T Super G3

Modem speed: Max. 33.6 kbps

Transmission speed: Less than 3 seconds

Scanning speed: 2 sec/sheet or less

Address book: 200 entries

Scanning densities:

Normal: 200 x 100 dpi, Fine: 200 x 200 dpi,

Superfine: 200 x 400 dpi, Ultrafine: 400 x 400 dpi

Maximum original size: A4, Legal

Compression method: JBIG, MMR, MR, MH

Features: Network fax, duplex transmission and reception,

polling transmission and reception

CONSUMABLES

Average continuous toner yield in accordance with ISO

19752

Toner-Kit TK-1184: toner yield 3,000 pages A4

Starter toner: toner yield 1,000 pages A4

OPTIONS

PF-1100 Paper feeder (max. 2 units): 250 sheets; 60 – 163

g/m2; A4, A5, A6, B5, Letter, Legal, Custom

(105 x 148 mm – 216 x 356 mm)

Memory upgrade: DIMM-1GBE: 1,024 MB

UG-33: ThinPrint support

USB IC Card Reader + Card Authentication Kit (B): Support

for various authentication keys available
