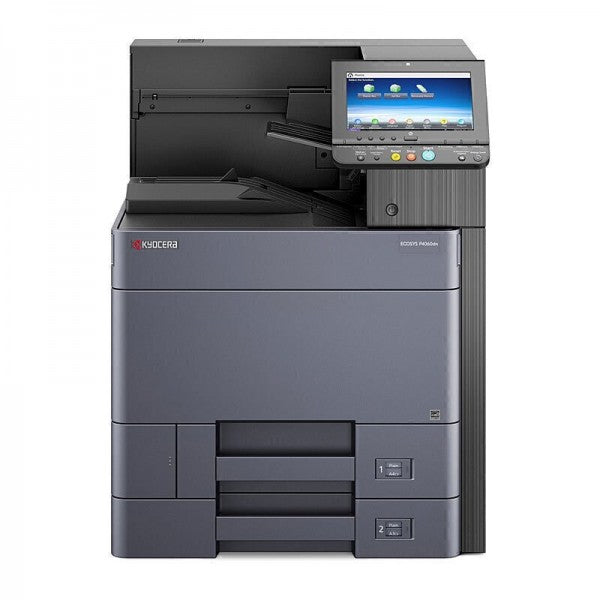

Kyocera ECOSYS P4060dn

The high-end, solution capable A3 mono printer will meet all of your demanding office requirements. With a print speed of up 60 pages per minute for A4 size paper and a fast first print out in 3.8 seconds, it will be ready when you need it. A user-friendly 9 inch full-colour and intuitive touch panel makes all the device's features easily accessible. This combined with our long-life components will provide exceptional efficiency and reliability, making this printer the perfect choice to increase overall productivity in workgroups and production offices.

GENERAL SPECIFICATION A3 Colour Print

KYOCERA ECOSYS Laser Monochrome,

HyPAS™ solution platform

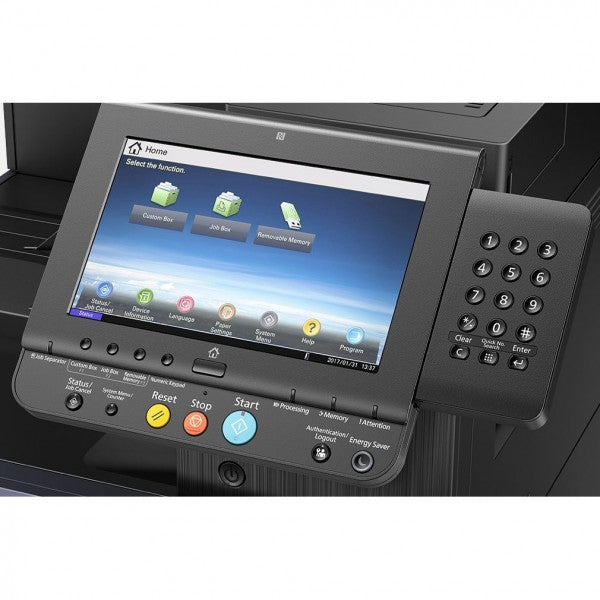

Operation panel: 9 inch full-colour touch panel display, 15–90°

swivel mounted

Engine speed: Up to 60/30 pages A4/A3 per minute,

Duplex print speed: 60 pages A4 per minute

Resolution: 1,200 × 1,200 dpi, 2 bit depth for print quality

of 4,800 dpi equivalent × 1,200 dpi

Warm-up time: Approx. 17 seconds or less

Time to first print: Approx. 3.8 seconds or less

CPU: Freescale QorIQ T1024 (Dual Core) 1.2 GHz

Memory: 4 GB RAM, 8 GB SSD + 320 GB HDD

Standard interfaces: 4 × USB 2.0 (Hi-Speed), USB Host 2.0,

Fast Ethernet 10 BaseT/100 BaseTX/1,000 BaseT, slot for optional

print server, slot for optional SD card

Integrated accounting: 1,000 department codes

Dimensions (W × D × H): 602 mm × 665 mm × 790 mm

Weight: 77.2 kg

Power source: AC 220–240 V, 50/60 Hz

Power consumption:

Printing: 820 W

Ready Mode: 40 W

Sleep Mode: 1.0 W

Noise (sound pressure level ISO 7779 measurement distance

of 1 meter):

Printing: 55.8 dB(A) L pA

Ready Mode: 32.4 dB(A) L pA

Safety standards: TÜV/GS, CE. This unit is manufactured

according to ISO 9001 quality standard and ISO 14001

environmental standard.

PAPER HANDLING

All paper capacities quoted are based on paper thickness of

max. 0.11 mm. Please use paper recommended by Kyocera under

normal environmental conditions.

Input capacity: Multi-purpose tray: 150 sheets, 52–300 g/m2

(Banner 135–165 g/m2), A6R–SRA3 (320 × 450 mm),

Tab paper (136 × 256 g/m2) Banner max. 320 × 1,220 mm;

Universal paper cassette: 2 × 500 sheets, 52–300 g/m2,

upper cassette A6R up to A4R (320 × 450 mm),

lower cassette A6R up to SRA3;

Max. input capacity with options: 7,150 sheets A4

Duplex: Duplex as standard supports 64–256 g/m2, A6R–SRA3

(320 × 450 mm)

Output capacity: Standard 500 sheets face-down, max. output

capacity with options 4,300 sheets

CONSUMABLES

Average continuous toner yield in accordance with ISO/IEC 19752.

TK-6334 Toner Kit: Microfine toner black for 35,000 pages A4,

Capacity of starter toner is 16,000 pages A4

WT-8500 Waste Toner Bottle: 70,000 sheets or more

(in accordance with ISO/IEC 19752)

Staples: SH-10 for DF-7120/BF-730, SH-12 for DF-7110

PRINT FUNCTIONS

Controller language: PRESCRIBE IIc

Emulations: PCL6 (PCL-5e/PCL-XL) , KPDL 3 (PostScript 3

compatible), PDF Direct Print, XPS Direct Print and OpenXPS

Operating systems: All current Windows operating systems,

MAC OS X Version 10.9 or higher, Unix, Linux, as well as other

operating systems on request

Fonts/barcodes: 93 outline fonts (PCL), 136 fonts (KPDL 3), 8

fonts (Windows Vista), 1 Bitmap font, 45 types of one-dimensional

barcodes, 1 type of two-dimensional barcode (PDF417)

Print features: Encrypted PDF Direct Print, IPP printing, e-mail

printing, WSD print, secure printing via SSL, IPsec, SNMPv3,

quick copy, proof and hold, private print, job storage and job

management functionality, Duplex print mode, N-Up printing

mode, Toner save mode

Mobile printing support: AirPrint, Mopria, Google Cloud Print

compliant, NFC, Direct Wi-Fi (optional), MyPanel and KYOCERA

Mobile Print app for iOS and Android

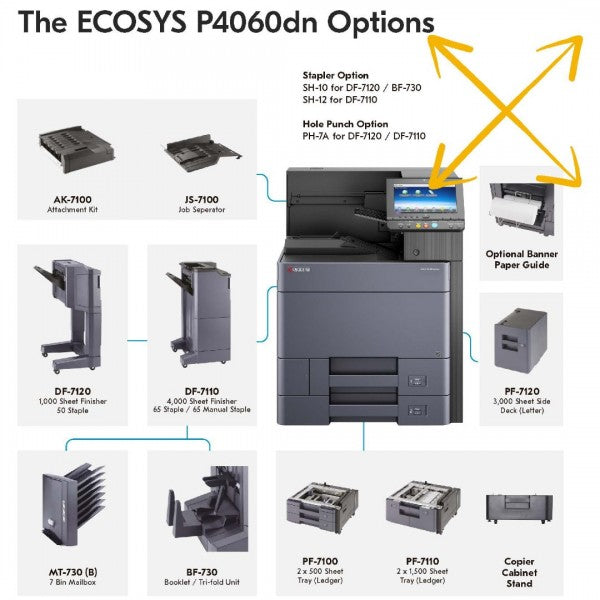

OPTIONS

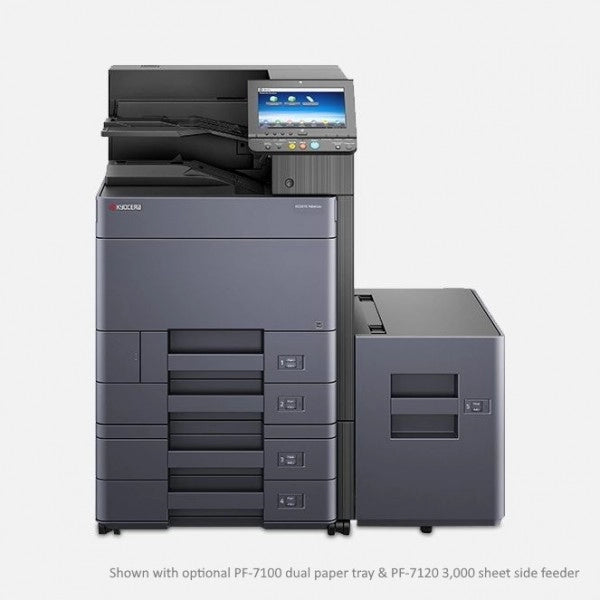

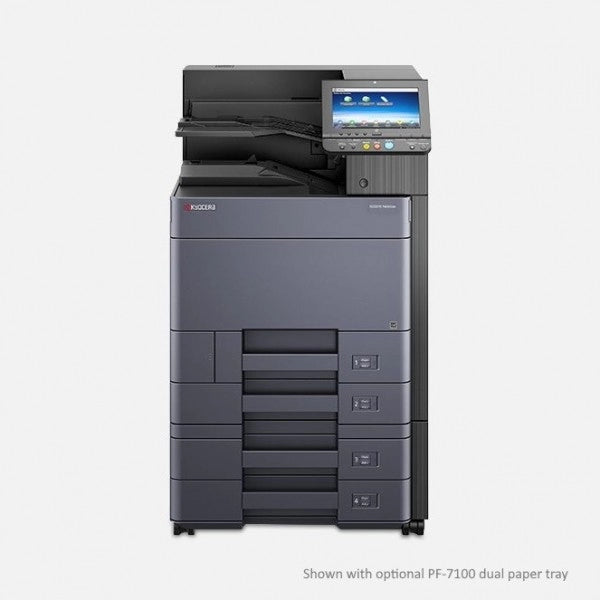

PF-7100 Paper feeder: 2 × 500 sheets, 52–300 g/m2;

A6R–SRA3 (320 × 450 mm), folio

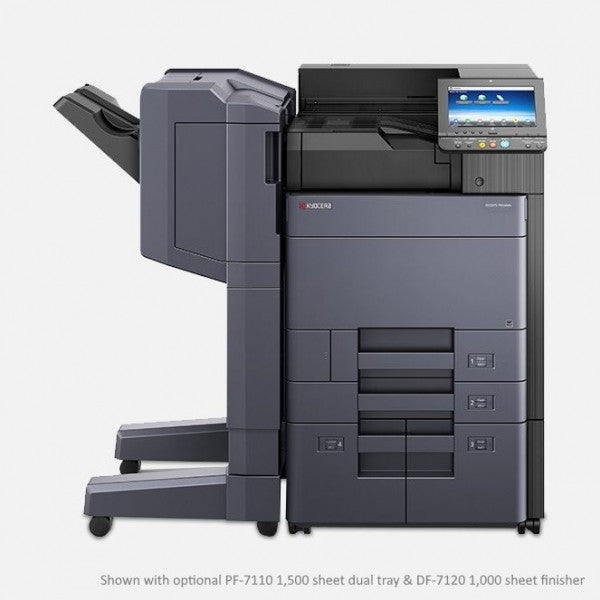

PF-7110 Paper feeder: 2 × 1,500 sheets, 52–300 g/m2;

A4, B5, letter

PF-7120 Paper feeder: A4 side Deck: 3,000 sheets, 60–300 g/m2;

A4, B5 (PF-7100 or PF-7110 required)

JS-7100 Job separator: 100-sheet internal job separator,

52–300 g/m2; A5R–SRA3

CB-7100W Wooden Cabinet: desk with storage capacity

CB-7110M Metal Cabinet: desk with storage capacity

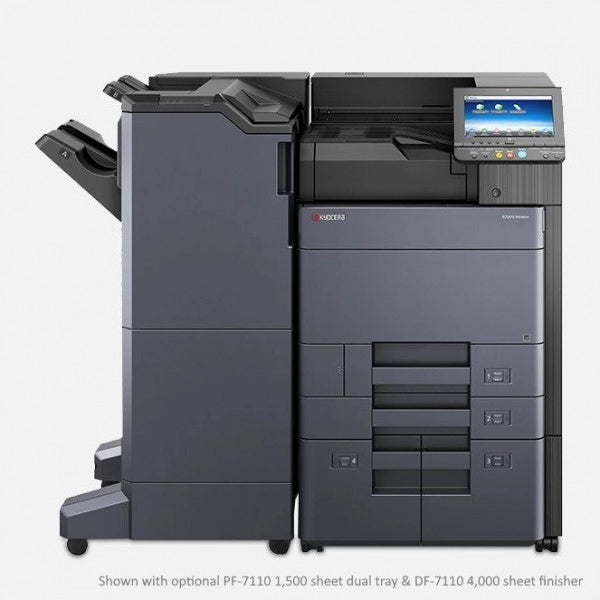

DF-71101 Document Finisher + AK-7100:

Main tray: Max. 4,000 sheets A4 (3,000 sheets with

attachment BF-730); max. 52–300 g/m2; max. A6R–SRA3

Sub tray: 200 sheets A4; 52–300 g/m2; A6R–SRA3

AK-7100: 100 sheets; 52–300 g/m2; A6R–SRA3

Stapling up to 65 sheets A4 or 30 sheets A3 at 3 positions,

B5–SRA3

DF-71201 Document Finisher + AK-7100:

Main tray: 1,000 sheets A4, 52–300 g/m2, A6R–SRA3,

3 positions stapling up to 50 sheets A4 or 30 sheets SRA3

AK-7100: 100 sheets; 52–300 g/m2, A6R–SRA3

PH-7C Punch Unit: for DF-7120/DF-7110: 2-hole/4-hole/Swedish

type, 60–300 g/m2, A5R–A3

MT-730(B) Mailbox sorter: for DF-7110, 7 bins × 100 sheets A4,

50 sheets A3/B4, 60–165 g/m2

BF-730 Booklet and tri-folding unit: for DF-7110

Half-folding: 52–256 g/m2, A3, B4, A4R

Booklet: Max. 16 sheets (64 pages, 60–90 g/m2)

Non-staple folding: Max. 5 sheets (60–90 g/m2)

Tri-folding: 60–105 g/m2, A4R

Multi tri-folding: 5 sheets (60–90 g/m2), 3 sheets (91–105 g/m2)

Data Security Kit (E): Encrypts data stored on SSD/HDD.

In line with ISO 15408 (common criteria) with security level EAL2.

NK-7100(B): Numeric keypad

Card Authentication Kit (B) AC:

USB IC Card Reader supports various authentication card keys

UG-33: ThinPrint support

UG-34: Emulation (IBM Proprinter/EPSON LQ-850/Line Printer)

Optional interfaces:

IB-35: Direct Wi-Fi Interface

IB-50: Gigabit Ethernet: 10BaseT/100BaseTX/1000BaseT (RJ45)

IB-51: Wireless LAN (802.11b/g/n)
