KYOCERA ECOSYS PA3500x

With its compact design and quiet printing capabilities, the ECOSYS PA3500x is the ideal addition to any office, providing fast print speeds and reliable performance due to its long-life components. Standard National Metro Delivery 2-3 day

GENERAL SPECIFICATION

KYOCERA ECOSYS Laser Monochrome Printer

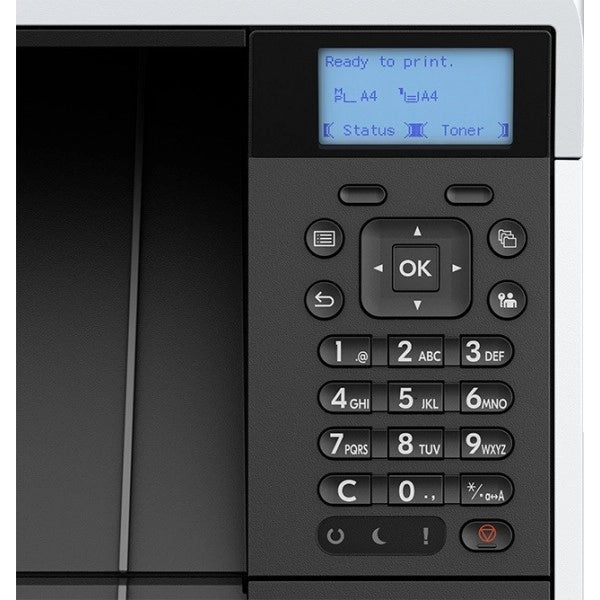

Operation panel: LCD 21 characters, 5 lines

Type: Desktop

Engine speed: Up to 35 A4 pages per minute simplex (single-sided), Up to 17.5 A4 pages per minute duplex (both sides)

Resolution: 1200 x 1200 dpi (print)

Recommended Print Volume: Average 2,000 pages per month

Maximum Print Volume: 50,000 pages per month

Maximum Life: 170,000 pages or 5 years

Warm-up time: Approx. 15 seconds or less (after switching on)

Time to first print: Approx. 6.4 seconds or less

CPU: ARM Cortex-A53, 1.0GHz

Memory: Standard 512 MB

Standard interface: USB 2.0 (Hi-Speed), Network (10BASE-T/100BASE TX/1000BASE-T), USB host for USB flash memory, slot for optional SD/SDHC card Integrated accounting: 20 department codes

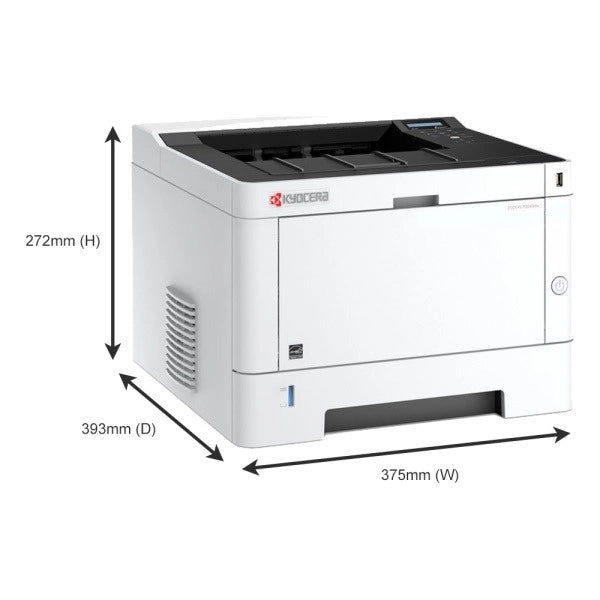

Dimensions (W x D x H): Without packaging: 375 x 393 x 272 mm,

Weight: Without packaging: Approx. 14.5 kg (with bundled toner),

Noise (sound pressure level: ISO 7779/ISO 9296): Printing: 52 dB (A)

PAPER HANDLING

All paper capacities quoted are based on paper thickness of

max. 0.11 mm.

Input capacity: Multi-purpose tray: 100 sheets at 80 g/m2

60–220 g/m², A6, A5, A4, custom (70 × 148 – 216 × 356 mm).

Standard universal paper cassette: 250 sheets at 80 g/m2, 60–163 g/m2, A6, A5, A4, custom (105 × 148 – 216 × 356 mm).

Max. input capacity with options: 850 sheets at 80 g/m2

Duplex: Standard duplex unit, two-sided printing, 60–163 g/m², A5, A4, custom (140 × 210 - 216 × 356 mm).

Output capacity: Max. 250 sheets (face-down)

PRINT FUNCTIONS

Controller language: PRESCRIBE

Emulations: PCL 6 (5e, XL), KPDL3 (PostScript 3 compatible), Lineprinter, IBM Proprinter, Epson LQ-850, PDF Direct Print 1.7, 2.0, XPS/Open XPS Direct Print, TIFF Direct Print

Operating systems: All current Windows operating systems, MAC OS X Version 10.9 or higher, Chrome OS, as well as other operating systems on request

Fonts/barcodes: 93 outline fonts (PCL6, KPDL3), 4 fonts (Calibri), 4 fonts (Cambria), 1 Bitmap font, 45 one-dimensional barcodes (e.g. EAN-8, EAN-13, EAN-128), as well as support for two-dimensional barcodes PDF417 under PRESCRIBE (PCL and other barcodes available an option)

Print features: “Proof and hold”2, Job storage2, Quick copy2, Private print2, Data storage method with PIN code or password2, Internet printing IPP 1.0, E-mail printing, WSD Print, EcoPrint - toner save mode, AirPrint, Mopria, Microsoft Universal Print, Job batch output, Image Refinement, Pull print, VPSX, IPP PIN Print, optional Kyocera Cloud Print and Scan selected function integration

Security features: Secure Boot, Run-time Integrity Check, Allowlisting, TLS 1.3, IPSec, HTTPS, SNMPv3, “Confidential printing” with PIN code request2, encrypted PDF direct printing, Security Watermark, IPP over TLS, WSD, local and network authentication, Windows authentication (NTLM v2, Kerberos), Restriction of the user group through user login administration, IP filtering, port number restriction, blocking of interfaces, Security Quick Setup, SIEM Support (SysLog), SCEP, OCSP/CRL, optional TPM (Trusted Platform Module)

Mobile printing support: KYOCERA Mobile Print app for iOS and Android, AirPrint, Mopria, Microsoft Universal Print

CONSUMABLES

Average continuous toner yield in accordance with ISO/IEC 19752

TK-1254 Toner Kit: Microfine toner black for 3,000 pages A4. Capacity of starter toner is 1,000 pages A4.

OPTIONS

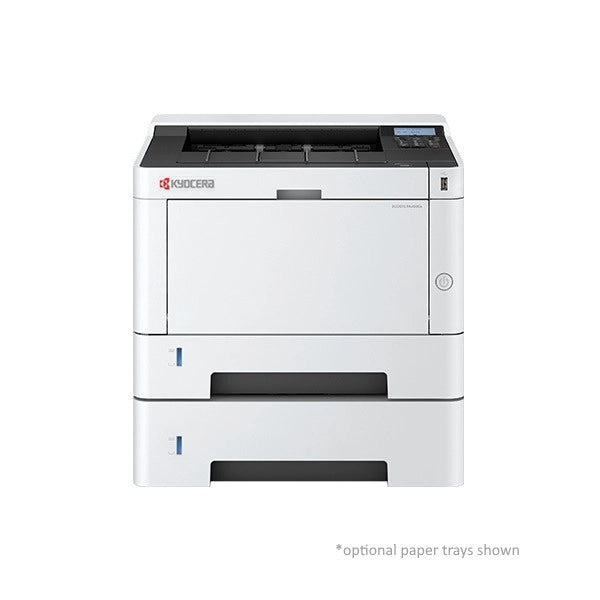

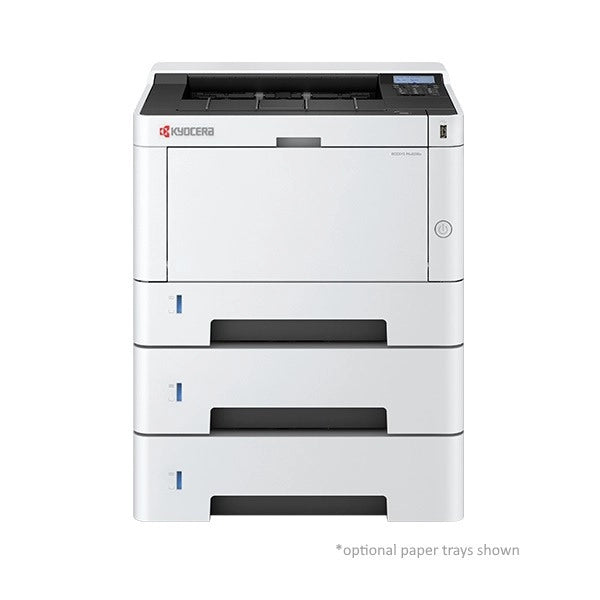

PF-1100 Paper feeder (max. 2 units): Max. 250 sheets at 80 g/m2, 60 - 163 g/m²; A6, A5, A4, custom (105 × 148 mm - 216 × 356 mm)

SECURITY

UG-33 AC: ThinPrint support UG-50: TPM (Trusted Platform Module), additional protection of confidential data USB IC Card Reader + Card Authentication Kit (B): Support for various authentication keys available

WARRANTY

2-years return to base warranty as standard.

WHAT'S IN THE BOX:

Main unit, starter toner for 1,000 pages, Quick Guide, safety instructions and power supply cord.

DVD with drivers, software and user manual not included.
