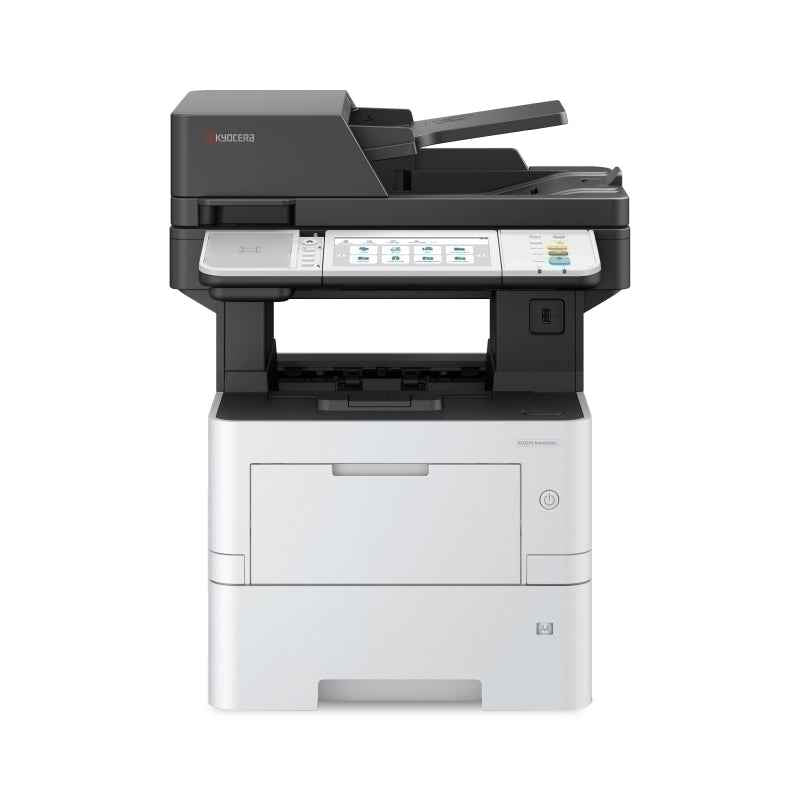

Kyocera ECOSYS MA4500ifx

The ECOSYS MA4500ifx blends a compact design with reliability. Alongside fax capabilities, users get stunning output quality from the first print to the last. Offering high-end security capabilities and low energy consumption features, this MFP is the perfect fit for small to medium-size workspaces.

BASIC SPECIFICATIONS Print / Copy / Fax / Scan / Wireless Optional / Improved Larger User Interface

Configuration: Multifunctional Printer - Print/Copy/Scan/Fax

Pages per Minute: Letter: 47 ppm; Legal: 38 ppm

Duplex Print Speed: Letter: 23.5 ppm; Legal: 19 ppm

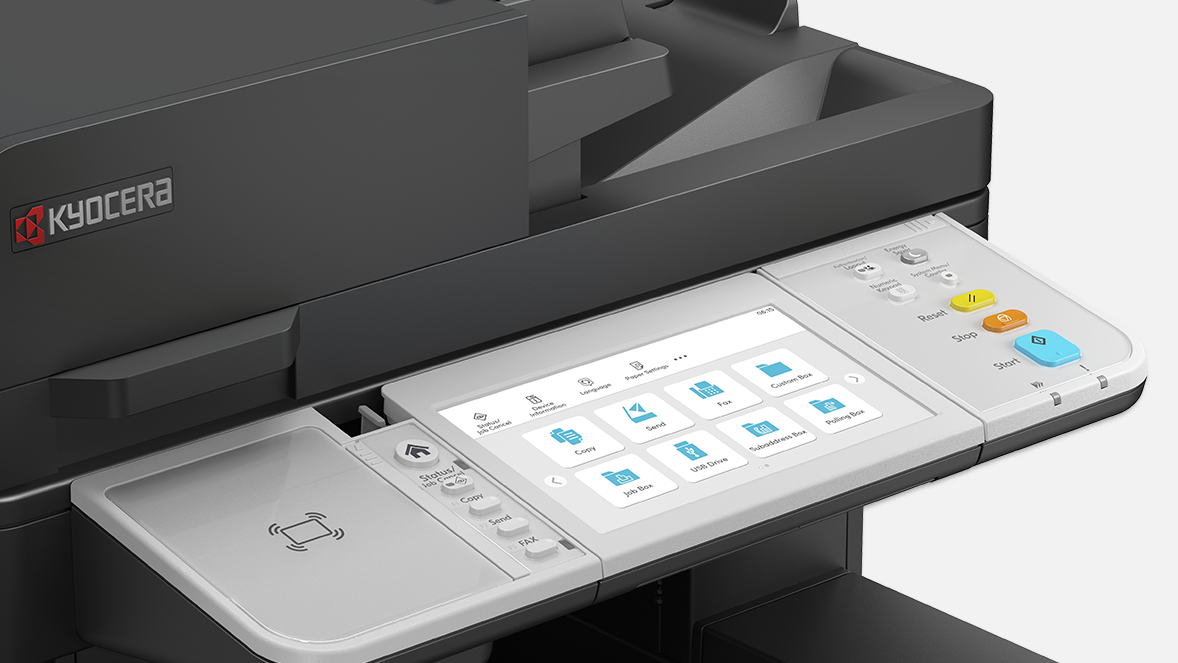

Display: 7” Color Touch Screen Control Panel (TSI)

Warm Up Time: 23 Seconds or Less (Power On)

First Page Out Time: Copy: 6 Seconds or Less (with Document

Processor), 7 Seconds or Less (without Document Processor),

Print: 5.3 Seconds or Less

Resolution: 600 x 600 dpi, Fine1200 (1200 x 1200 dpi) and

Fast1200 (1800 x 600 dpi) Interpolated Resolution

Memory: Std/Max: 1.5 GB / 3.5 GB

Dimensions / Weight: 18.7” W x 18.7” D x 22.6” H / 49.6 lb.

Maximum Monthly Duty Cycle: 150,000 Pages per Month

PRINTER SPECIFICATIONS

Standard Controller: ARM Cortex-A53 Dual Core 1.4GHz (for

printing) & ARM Cortex-M3 100MHz (for energy saver)

PDLs / Emulations: Common: PCL6 (PCL XL/PCL 5c), KPDL3

(PostScript3 compatible & AES Support), PDF with KPDL3

setting, XPS/Open XPS, Common Image Format: TIFF (KPDL3;

ON), JPEG (KPDL3; ON), URF, PWG Raster, PCLm, World: IBM

Proprinter, EPSON LQ-850, LinePrinter

Fonts: Outline: 93 Fonts (PCL 6/KPDL3), 4 Fonts (Calibri/

Cambria); Bitmap: 1 Font, 79 Outline Fonts Graphics:

Supporting PRESCRIBE + JPEG image commands, One-

Dimensional Barcode: 45 Type; Two-Dimensional Barcode:

PDF417 1 Type

Windows OS Compatibility: Windows 8.1, Windows 10

(32/64/arm64), Windows 11 (32/64/arm64), Windows Server

2012/R2, 2016, 2019

MAC OS Compatibility: Requires Mac OS X v10.5 or Later

Linux OS Compatibility: Linux Distro version: Debian 11,

Ubuntu 20.04, RHEL 8, CentOS Linux 8, Fedora 34, 35,

OpenSUSE 15.3

Interface: 10BASE-T/100BASE-TX/1000BASE-T(TCP/IP,

NetBEUI), 1 High-Speed USB 2.0, 1 High-Speed USB 2.0 Host,

1 Expansion Slot; Optional: Wireless IB-37/38 LAN (Approx. 98

ft Range & Wi-Fi Direct), IB-51 (Approx. 328 ft Range); IB-50

Dual LAN NIC

Mobile Printing: KYOCERA Mobile Print, KYOCERA My Panel,

KYOCERA Print Service Plug-in, Apple AirPrint®, Mopria®, and

Wi-Fi Direct1

Network Print and Supported Protocols: Network printing:

TCP/IP, FTP, LPR, Port 9100, NetBEUI, Apple Bonjour; Internet

printing: IPP/1.0 (Some 1.1 functions are also supported);

E-mail printing: Data printing of E-mail received data, Data

format: PDF, PS, Text, TIFF, JPEG, XPS, OpenXPS; Secure

printing: IPP over TLS; Web PAGE Function; WSD Print: WSD

Compliance Scan/Print; PDF direct print: Use “KYOCERA NET

Direct Print”, PDF Ver. 2.0, Encryption PDF, TIFF, JPEG, XPS

Mode; MPT Priority Function: 1) OFF, 2) ON, 3) Auto paper

feed; Pull printing: Option, Support with KYOCERA NET

Manager, Supports job selection and output by registered

user, Authentication from the panel or IC-Card authentication

kit (B); Connectivity: Plug & Play (USB), SNMP (Printer MIB

Support), HTTP (Command Center RX: web page), PnP-X (WS-

Discovery for WSD Print Service), Apple Bonjour

Drivers: KX Driver, PCL Mini Driver, KPDL Mini Driver,

Windows Inbox Driver, Network FAX Driver, TWAIN Driver

(Network, USB, and BOX), WIA Driver (Network and USB),

MAC Driver, Linux Driver

Utilities: KYOCERA Net Direct Print, Status Monitor, File

Management Utility, KYOCERA Print Center, KYOCERA Quick

Scan, Web Installer, KYOCERA Device Manager, KYOCERA

Net Viewer, Quick Network Setup, Maintenance Menu, Wi-Fi

Setup Tool, Firmware Upgrade Tool, Remote Panel, Command

Center RX; KYOCERA Fleet Services (KFS) Ready

Additional Print Features: HyPAS capable3, EcoPrint, Private

Print, Proof and Hold, Quick Copy and Job Storage3, Print

Priority Setting, Job End Notification

SECURITY SPECIFICATIONS

Local and Network Authentication, Encryption Communication

(IPsec, HTTPS, LDAP over TLS, SNMPv3, SIEM/Syslog, SMTP

over TLS, POP over TLS), Optional TPM (Trusted Platform

Module) chipset when UG-50 is attached, SCEP, OCSP/CRL

(CRL: W/option Memory), ECDSA, Secure Boot, Run Time

Integrity Check, Support for FIPS 140-3 (option SSD), Common

Criteria (ISO/IEC-15408/EAL2 W/SSD), HDD Overwrite when

optional storage device is attached, IPP over TLS, HTTP over

SSL/TLS, FTP over SSL/TLS, Enhanced WSD over SSL/TLS,

SCAN SPECIFICATIONS

Scan Type: Color and Black & White Scanner

Scan Resolution: 300dpi x 300dpi, 200dpi x 200dpi(Default),

200dpi x 100dpi, 600dpi x 600dpi , 400dpi x 400dpi, and

200dpi x 400dpi

Scanning Functions: Banner Scan, Scan Resolution, Line

Skip, File Separation, Blank Page Skip Scan, WSD Scan (WIA

Driver), PC Send (SMB Version 3.0), E-mail Send (SMTP),

FTP Send (FTP, FTP over SSL), USB Send (USB), TWAIN Scan

(KM-WSDL Scan Operation Service – TWAIN Driver), WIA

Scan (KM-WSDL Scan Operation Service – WIA Driver), WSD

Scan (WIA Driver), ChromeOS(Scan) (eSCL), AirPrint (eSCL),

Mopria (eSCL)

File Formats: Standard: TIFF (MMR compression), XPS,

OpenXPS, JPEG, PDF/A, PDF (MMR Compression, High

Compression, and Encryption). Option: Searchable PDF, MS

Office File.

Scan Speeds: Simplex BW/Color: @200dpi and @300 dpi:

62ipm/42ipm; @600 dpi: 42ipm/22ipm

Duplex (RADP) BW/Color: @200dpi and @300 dpi:

27ipm/18ipm: @600 dpi: 18ipm/9ipm

COPY SPECIFICATIONS

Image Mode: Map/Diagram: (256 tones & 2 bits/dot (FM),

Text: (256 tones & 2 bits/dot (FM), Photo: (256 tones & 2 bits/

dot (AM), Text + Photo: (256 tones & 2 bits/dot (FM)

Continuous Copy: 1-999

Job Management: Address Book: 200 (HyPAS), Job

Accounting: 100 (HyPAS), Panel Program: 20 (HyPAS),

Shortcut: 6 (HyPAS)

Magnification / Zoom: 7 Reduction, 5 Enlargement Preset

Ratios, 25 - 400% in 1% Step Increments

Additional Features: Auto Duplex (One-sided to Two-sided

and Two-sided to Two-sided), Continuous Scan, Blank Page

Skip Copy, Line Skip Copy, ID Card Copy

DOCUMENT PROCESSOR

Type / Capacity: Reverse Automatic Document Processor

(RADP) / 75 Sheets

Acceptable Originals: Statement to Legal

(5.5” x 8.5” – 8.5” x 14”)

Acceptable Weights: Simplex / Duplex: 13 - 32lb Bond

(50 – 120gsm)

FAX SPECIFICATIONS

Compatibility / Data Compression: ITU-T G3 Fax / MMR,

MR, MH, JBIG

Transmission Speed / Modem Speed: 33.6kbps

Fax Functions: Fax Direct Tx, Fax Memory Tx, Scheduled

Transmission, Fax Polling Tx & Rx, Subaddress Tx, Subaddress

Confidential Rx, Subaddress bulletin board Rx, Forward Fax,

Network Fax Tx, Network Fax Rx, Shared Fax Driver, Speedy

transmission of Send Job (Scheduled Job)

PAPER SUPPLY

Standard Paper Sources: Single 500 Sheet Drawer, 100 Sheet

Multipurpose Tray

Standard / Maximum Paper Sources: 2 / 6 Including

Multipurpose Tray

Standard / Maximum Paper Capacity: 600 Sheets /

2,600 Sheets

Paper Size: Standard and MPT: Statement to Legal

(5.5” x 8.5” – 8.5” x 14”), Custom; MPT: Envelope, Banner

Paper Weight: Standard / Optional Drawers: 16 lb.

Bond – 32 lb. Bond (60 – 120gsm); MPT: 16 lb. Bond – 110 lb

Index (60 – 220gsm)

Standard Output Tray Capacity: 250 Sheets (Face Down)

Input Materials: Standard / Optional Drawer: Plain Paper,

Bond Paper, Recycled Paper; MPT: Plain Paper, Bond Paper,

Labels, Recycled, Letterhead, Envelopes, OHP, Thin/Thick

Paper, Coated, Banner

PAPER HANDLING OPTIONS

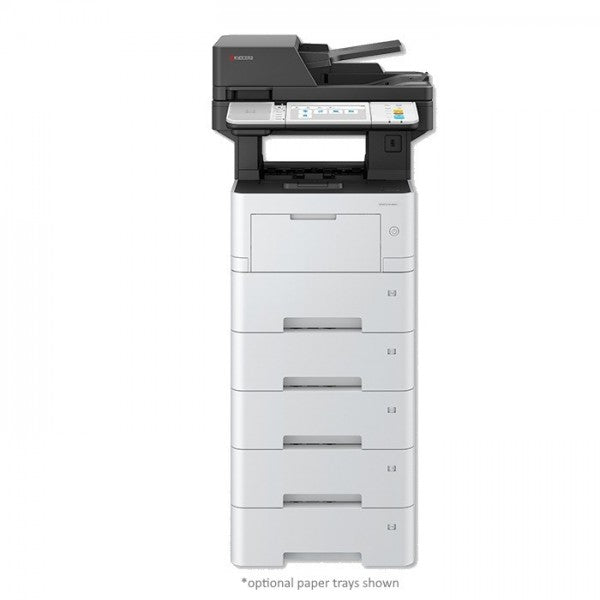

PF-3110: Paper Feed Cassette (500 sheets x 4)

Paper Size: Statement to Legal (5.5” x 8.5” – 8.5” x 14”),

Envelope, Custom

Dimensions / Weight: 14.9” W x 16.1”D x 4.8” H / 8.4 lbs.

ADDITIONAL OPTIONS

Print Management: ThinPrint (UG-33)

Security: Card Authentication Kit(B)

SD Card: 16 and 32 GB

SSD: HD-17: 64 GB SSD / HD-18: 256 GB SSD /

HD-19: 512 GB SSD

Wireless LAN: IB-37, IB-38, and IB-51 (does not support

HyPAS or KFS).

Additional NIC: IB-50 Gigabit NIC

Optional Memory: 2 GB DIMM Memory (DDR3)

Other: Scan Extension Kit (A), USB Keyboard

(Customer Supplied)

NOTE:

1Requires Optional IB-37 or IB-38

2Requires Optional Scan Extension Kit (A)

3Requires SD Card, HD-17, HD-18, or HD-19
