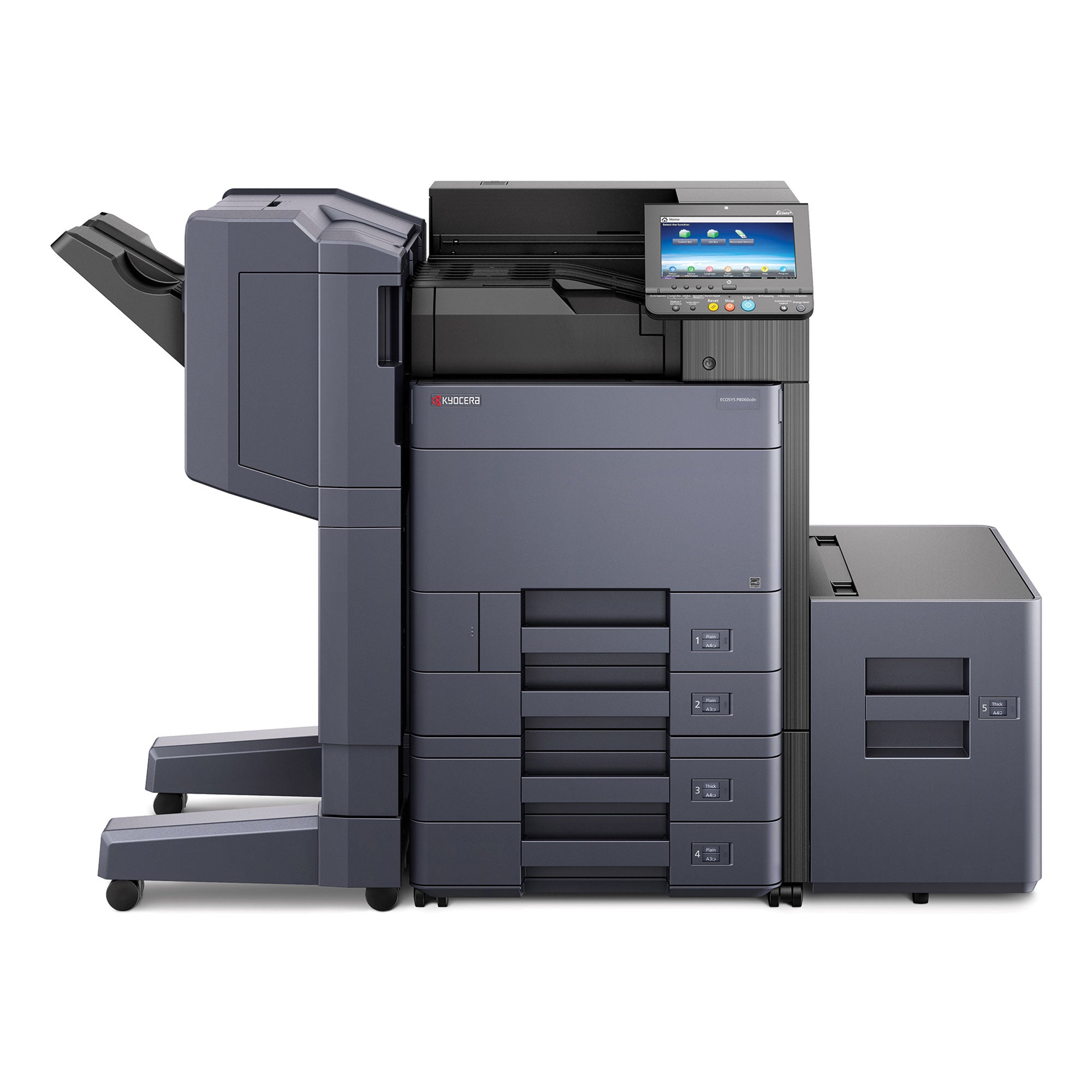

Kyocera Ecosys P8060CDN

Our new high-end A3 colour printer is the perfect choice for demanding

workgroups and production offices. With a print speed of up to

60 A4 pages per minute for b/w and 55 for colour, the device’s new colour

technology offers outstanding and vivid results and our new printer offers

a maximum paper capacity of 7,150 sheets. Its fast performance is

secured by an 8 GB Solid State Drive and a 320 GB HDD, enabling it

to maintain its high print speeds even at maximum print resolution.

Additionally, the redesigned 9” touch panel makes accessing all features

very intuitive and easy to use.

GENERAL SPECIFICATION A3 Print

PAPER HANDLING

Technology: KYOCERA ECOSYS, Colour Laser

Touch panel size: 22.8 cm (9 inch) full-colour touch panel

display, 15° – 90° swivel mounted

Engine speed (pages per minute): Up to 55/27 ppm A4/A3

in colour, up to 60/30 A4/A3 in b/w

Resolution: 1,200 x 1,200 dpi, 2 bit depth for print quality

of 4,800 dpi equivalent x 1,200 dpi

Warm-up time from power on: Approx. 17 seconds or less

Time to first page: Approx. 3.8 sec. or less in b/w;

5.1 sec. or less in colour

CPU: Freescale QorIQ T1024 (Dual Core) 1.2 GHz

Memory (standard max.): 4 GB RAM, 8 GB SSD

+ 320 GB HDD

Standard interface: 4x USB 2.0 (Hi-Speed), USB Host 2.0,

Fast Ethernet 10 BaseT/100 BaseTX/1,000 BaseT, slot for

optional print server, slot for optional SD card

Dimensions (W x D x H): Main unit: 602 x 665 x 790 mm

Weight: Main unit approx. 89 kg

Power source: AC 220 V ~ 240 V, 50/60 Hz

Power consumption:

Printing: 960 W (in colour and b/w)

Ready mode: 60 W

Sleep mode: 1 W or less

Noise (sound pressure level ISO 7779/ISO 9296):

Printing monochrome: 55.4 dB(A) LpA

Printing in colour: 55.5 dB(A) LpA

Ready mode: 19.0 dB(A) LpA

Safety standards: TÜV - GS, CE.

This unit is manufactured according to ISO 9001 quality

standard and ISO 14001 environmental standard.

RoHs compatibility

All paper capacities quoted are based on paper thickness

of max. 0.11 mm. Please use paper recommended by

KYOCERA under normal environmental conditions.

Input capacity:

150-sheet multipurpose tray, 52 – 300 g/m2

(Banner 135 – 165 g/m2 ), A6R – SRA3 (320 x 450 mm),

Tab paper (136 – 256 g/m2 ), Banner max. 320 x 1,220 mm;

2x 500-sheet universal paper cassette, 52 – 300 g/m2

,

upper cassette A6R up to A4R, lower cassette A6R up to

SRA3, Max. input capacity with options: 7 ,150 sheets A4

Duplex unit: Duplex as standard supports

A6R – SRA3 (320 x 450 mm), 64 – 256 g/m2

Output capacity: Standard 500 sheets face-down,

max. output capacity with options 4,300 sheets

PRINT FUNCTIONS

Controller language: PRESCRIBE

Emulations: PCL6 (PCL5c / PCL-XL), KPDL3 (PostScript 3

compatible), PDF Direct Print, XPS Direct Print and OpenXPS

Operating systems: All current Windows operating systems,

Mac OS X Version 10.8 or higher, UNIX LINUX,

as well as other operating systems on request

Fonts/barcodes: 93 outline fonts (PCL), 136 fonts (KPDL3),

8 fonts (Windows Vista), 1 Bitmap font, 45 types

of one-dimensional barcodes plus two-dimensional

barcode (PDF-417)

Print features: Encrypted PDF Direct Print, IPP printing,

e-mail printing, WSD print, secure printing via SSL, IPsec,

SNMPv3, quick copy, proof and hold, private print,

job storage and job management functionality

Mobile printing support: KYOCERA Mobile Print app

for iOS and Android; AirPrint, Mopria, NFC, Direct Wi-Fi,

GoogleCloud Print

Average continuous toner yield in accordance with

ISO/IEC 19798

CONSUMABLES

Toner-Kit TK-8804K: black toner yield 30,000 pages A4

Starter toner: black toner yield 15,000 pages A4

Toner-Kit TK-8804C, TK-8804M, TK-8804Y: cyan,

magenta, yellow toner yield 20,000 pages A4

Starter toner: cyan, magenta, yellow toner yield 10,000

pages A4

WT-8500 Waste Toner Bottle: 40,000 sheets or more

(in accordance with ISO/IEC 19798, ratio b/w : colour = 7 : 3)

Staple cartridge:

SH-10 for DF-7120, BF-730

SH-12 for DF-7110

OPTIONS

PF-7100 Paper feeder: 2x 500 sheets, 52 – 300 g/m2

,

A6R – SRA3 (320 x 450 mm), folio

PF-7110 Paper feeder: 2x 1,500 sheets, 52 – 300 g/m2

,

A4, B5, letter

PF-7120 A4 side Deck: 3,000 sheets, 60 – 300 g/m2

,

A4, B5 (PF-7100 or PF-7110 required)

JS-7100 Job separator:

100-sheet internal job separator, 52 – 300 g/m2

, A5R – SRA3

COMMAND CENTER RX

The Command Center RX enables to control and manage various settings by accessing

the device via Web browser.

USB HOST INTERFACE FOR USB FLASH MEMORY

Documents can be printed directly from a USB Flash Memory (e.g. USB stick) via the USB

host interface. The documents stored as PDF, XPS, TIFF or JPEG are selected directly via

the printer’s control panel. No computer is required.

APPLICATION-BASED PROFILES

The KX printer driver can create a direct link between dedicated applications and

predefined or customised print profiles. You can set that all documents from a user

or an application be printed in b/w with activated duplex mode as standard, thus leading

to a reduced toner and paper consumption.

DF-7110* Document finisher + AK-7100:

Main tray: Max. 4,000 sheets A4 (3,000 sheets with

attachment BF-730); max. 52 – 300 g/m2; max. A6R – SRA3

Sub tray: 200 sheets A4; 52 – 300 g/m2; A6R – SRA3

AK - 7100: 100 sheets; 52 – 300 g/m2; A6R – SRA3

Stapling up to 65 sheets A4 or 30 sheets A3 at 3 positions,

B5 – SRA3

DF-7120* Document finisher + AK-7100:

Main tray: 1,000 sheets A4, 52 – 300 g/m2

, A6R – SRA3,

3 positions stapling up to 50 sheets A4 or 30 sheets SRA3

AK - 7100: 100 sheets; 52 – 300 g/m2

, A6R – SRA3,

*Bridge unit AK-7100 is required for the use of DF-7110

and DF-7120.

PH-7C Punch unit for DF-7120/DF-7110:

2-hole/4-hole, 60 – 300 g/m2, A5R – A3 MT-730(B) Mailbox

sorter for DF-7110:

7 bins x 100 sheets A4, 50 sheets A3/B4, 60 – 165 g/m2

BF-730 Booklet and tri-folding unit for DF-7110

Half-folding: 52 – 256 g/m2, A3, B4, A4R

Booklet: Max. 16 sheets (64 pages, 60 – 90 g/m2)

Non-staple folding: Max. 5 sheets (60 – 90 g/m2)

Tri-folding: 60 – 105 g/m2, A4R

Multi tri-folding: 5 sheets (60 – 90 g/m2), 3 sheets

(91 – 105 g/m2)

Data security kit (E): In line with ISO 15408

(common criteria) with security level EAL3

NK-7100 Numeric keypad

USB IC Card Reader: Card Authentication Kit (B)AC

UG-33: ThinPrint support

UG-34: Emulation (IBM Proprinter/EPSON LQ-850/Diablo

630)

Optional interface

IB-35: Direct Wi-Fi Interface

IB-50: Gigabit-Ethernet board 10 BaseT/100 BaseTX/ 1,000

BaseT

IB-51: Wireless LAN Interface

1290 Cabinet

Banner Guide 10
